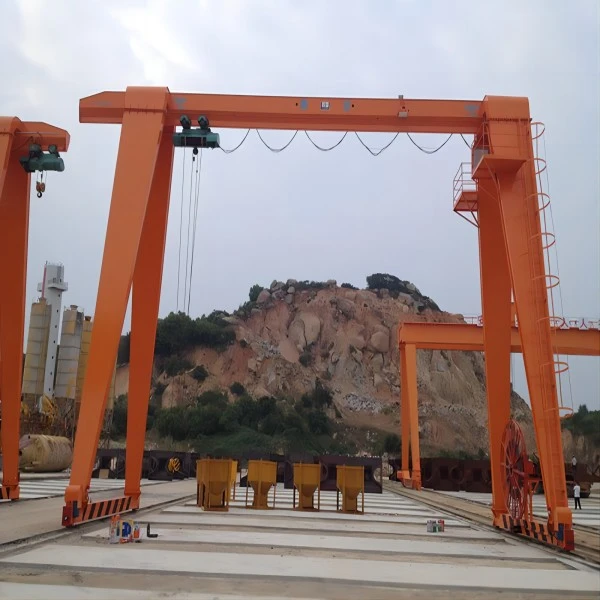

12 Tuj Gantry Crane

1. Khoom taw qhia:



Tib nqaj 12 tuj gantry crane yog ib qho gantry crane feem ntau siv sab hauv tsev thiab sab nraum zoov, uas yog qhov kev daws teeb meem zoo tshaj plaws rau nruab nrab thiab qis ua haujlwm ntawm cov khoom tuav. Nantes tuaj yeem xaiv lub taub hau qis qis, tus qauv lub taub hau hoist, kev sib txuas ncaj qha hom kab kawg, qhib iav hom kab kawg thiab lwm lub tuam tsev tsim qauv ib leeg nqaj gantry crane kom tau raws li cov nroj tsuag sib txawv thiab kev xav tau nyiaj txiag, peb ib leeg beam gantry crane muaj cov qauv compact, qis. hnyav, tsis tshua muaj suab nrov, yooj yim installation, yooj yim txij nkawm thiab lwm yam ntxwv.



Nws feem ntau yog siv ua ke nrog CD1 thiab MD1 hluav taws xob hoists. Feem ntau haum rau nqa qhov hnyav 3t-32t, ncua 12m-30m, tuaj yeem kho raws li cov neeg siv khoom xav tau, Ua haujlwm ib puag ncig -20 degree ~ +40 degree, kev ua haujlwm yog 25%, thiab cua siab tsis tshaj 125Pa. Qib ua haujlwm tuaj yeem ncav cuag A3-A4.

2. Parameters ntawm 12 tuj gantry crane:



Lifting peev (t)		3				5				10					16					20
Ntev (m) Customized		12	16	20	24	12	16	20	24	12	16	20	24	30	12	16	20	24	30	12	16	20	24	30
Lifting qhov siab (m)		6/9				6/9				6/9					6/9					6/9
Kev nrawm nrawm (m / min)	Hauv av	20				20				20					20					20
	Tswj Chav	20/30/45				20/30				20/30					20/30					20/30
Chav Ua Haujlwm		A3-A4
Hluav taws xob tam sim no		Peb-theem AC 380V 50Hz

3. Daim ntawv teev cov khoom ntawm 12 tuj gantry crane muaj xws li:



Kev tshuaj xyuas cov qauv hlau: tsom rau kev tshuaj xyuas cov khoom siv thiab vuam loosening, ntog tawm, tawg, choj deformation, kev txhim kho corrosion thiab lwm yam kev mob.



Lifting mechanism tshuaj xyuas: tsom rau kev kuaj xyuas qhov hnav thiab kev puas tsuaj ntawm lub cev muaj zog, coupling, reducer, ncej, bearing thiab lwm yam.

Kev soj ntsuam xyuas kev ua haujlwm: tsom rau kev hnav thiab kev puas tsuaj ntawm cov lem, lub log, nres thiab lwm yam khoom.



Kev tshuaj xyuas qhov system: tsom rau kev tshuaj xyuas seb cov khoom siv hluav taws xob, kev tswj hwm thiab kev ua haujlwm puas ua haujlwm zoo.

Kev tshuaj xyuas cov khoom siv hluav taws xob: tsom rau kev kuaj xyuas kev ncaj ncees ntawm cov khoom siv hluav taws xob, cov khoom siv hluav taws xob thiab cov khoom siv hauv av.



Lubrication check: Ua kom pom tseeb ntawm kev kuaj xyuas lub lubrication ntawm txhua lub lubrication point kom paub meej tias cov roj lubricating txaus thiab zoo ib yam.



4. Hnav Yam ntawm 12 tuj gantry crane:



Kev cob qhia hlua, Carbon brusher



5. Yuav ua li cas khiav 12 tuj gantry crane?



Cov neeg siv khoom customization



6. Kev thauj mus los:

7. Vim li cas thiaj xaiv peb?



Kev ntsuas ntsuas siab heev.



7 * 24 teev online pabcuam.

Cim npe nrov: Tuam Tshoj 12 tuj gantry crane lwm tus neeg, manufacturers, hoobkas
