Lub taub hau Crane Gantry

Nyiaj siv ua haujlwm crane gantry nrog clamp



Peb paub tias rau cov hlau zeb ua haujlwm, nws yog kev ua haujlwm tas mus li, uas yuav tsum xav tau nyiaj siv ua haujlwm crane gantry nrog clamp kom ruaj khov, tsis muaj kev saib xyuas thiab zoo tshaj plaws. Qhov tseem ceeb thiab tseem ceeb tshaj plaws yog cov kis tau tus mob mechanism uas muaj rau lub cev muaj zog, gearbox thiab brakes.



Kev Ua Tau Zoo Coil Handling yuav hais txog kev nqa kev ua haujlwm thiab kev xav tau ntau lawm. Kev nqa coils ntawm cov ntawv hlau rau hauv cov kab ntau lawm kom sai thiab nyab xeeb li sai tau yuav ua kom tag nrho cov khoom siv tau zoo thiab kev nyab xeeb. Maneuvering coils nyob rau hauv nqaim clearances yuav ua tau yooj yim nrog nyiaj siv ua haujlwm crane gantry nrog clamp coil tuav thiab coil lifting khoom.

2. Parameters:

Lifting Nyhav (t)		5		10			16/3.2		20/5		32/5			50/10		75/20	100/20
Ntev (m)		10.5,13.5,16.5		13.5,16.5,19.5			16.5,19.5,22.5		19.5,22.5,25.5		19.5,22.5,28.5			22.5,25.5,28.5		13.5,19.5,28.5	13,16,19
Kev ceev ntawm Crab (m / min)		37.2		43.8			44.6		44.6		42.4			38.5		38.4	33.86
Kev ceev ntawm Trolley (m / min)	A5	89.8	91.8	89.8	91.9	84.7	84.7	87.6	84.7	87.6	87.6	74.2	74.6	74.6		65	65.7
	A6	92.7	93.7	92.7	93.7	86.5	76	89	76	89	89	75.3	75.3	75	76.6	66.2	65.7
Chav Ua Haujlwm		A5-A8
Hluav taws xob tam sim no		Peb-theem AC 380V 50Hz lossis Customized



3. Cov khoom siv:

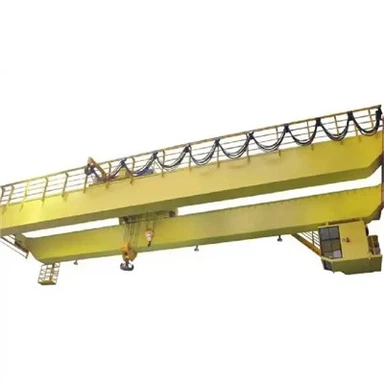

Nyiaj siv ua haujlwm crane gantry nrog clamp yog tsuas yog siv rau kev tuav thiab txhais lus ntawm slabs nyob rau hauv tas li dov mills. Lub crane feem ntau yog tsim los ntawm cov khoom siv hluav taws xob, lub trolley, lub laub kev khiav hauj lwm mechanism, tus choj thav duab thiab lub clamp, uas yog raws li qhov dav dav ob-girder overhead crane, tab sis cov nyiaj siv ua haujlwm crane gantry nrog clamp feem ntau ua haujlwm hauv kev tswj. chav.

Lub tshuab hluav taws xob slab clamp thiab lub trolley yog nruj me ntsis txuas los ntawm cov lus qhia lub tog raj kheej los tiv thaiv lub viav vias, thiab cov cuab yeej qhia lub tog raj kheej siv peb-theem telescopic hom.



4. Ib puag ncig siv tau:

Nyiaj siv ua haujlwm crane gantry nrog clamp yog tsim rau sab hauv tsev lossis qhib-cua spans xws li steel mills, shipyards, ports, cia yards thiab warehouses rau thauj, unload thiab thauj steel slabs, profiles thiab lwm yam ntaub ntawv.


Cov cuab yeej clamping yog cov khoom siv ntawm Cov Nyiaj Siv Ua Haujlwm crane gantry nrog clamp, Nws koom tes nrog ntau lub tshuab ua haujlwm ntawm lub crane kom tawg cov kua zaub los ntawm lub tsheb ingot, clamp lub ingot, muab cov ingot tso rau hauv lub qhov cub ntub, thiab tom qab ntawd tshem tawm. cov cua sov ingot los ntawm lub qhov cub soaking thiab xa mus rau lub tsheb ingot los yog ncaj qha.


Muab nws tso rau ntawm tus pas nrig thiab thauj mus rau lub tshuab tawg paj.


Tsis tas li ntawd, Overhead crane gantry nrog clamp kuj tuaj yeem siv los txav lub tsheb ingot lossis clamp lub tshuab ntxhua khaub ncaws sab sauv los ntxuav lub qhov cub hauv qab.

5. Cov khoom hnav:

Cov khoom hnav ntawm Overhead crane gantry nrog clamp muaj xws li nres rings, hlua qhia, buffers, mus txawv tebchaws limiters, contactors, thiab tam sim no collectors.



6. Nta ntawm Cov Nyiaj Siv Ua Haujlwm crane gantry nrog clamp



* Radius nyob rau hauv cov ces kaum txo qhov kev ntxhov siab nyob rau hauv qhov chaw tseem ceeb yam tsis muaj kev cuam tshuam nrog cov khoom nqa.



* Ib qho kev nqa lub voj yuav txo tau lub taub hau thiab xav tau kev saib xyuas tsawg dua li cov pa welded nqa loops.



* Arc sab saum toj zoo suits lub contour ntawm tus ID ntawm lub kauj uas tiv thaiv cov npoo ntse los ntawm kev puas tsuaj rau cov khoom.



* Kev taw qhia tuav cia lub lifter tau yooj yim maneuvered.



* Counterweight balances thiab hangs lub lifter, ob leeg khoob thiab loaded.



* Kev xaiv urethane bumpers tuaj yeem muab ntxiv los muab kev tiv thaiv ntxiv.



7. Kev thauj mus los:



8. Cov lus nug nquag nug txog Ob Chav Girder Nyiaj Siv Ua Haujlwm Crane nrog Crane Clamp Lifting Tong



Q: Koj tus MOQ yog dab tsi?
A: 1set.

Q: Koj pob khoom yog dab tsi?
A: Lub cev tseem ceeb hauv lub thawv plywood lossis hauv cov ntaub qhwv yas; Cov khoom seem hauv cov thawv plywood.

Q: Koj lub sijhawm xa khoom yog dab tsi?
A: Tsis pub dhau 10/25/40 hnub tom qab koj tau txais cov nyiaj them kawg nkaus; lub sijhawm caij nyoog yuav tsum yog raws li cov lus qhia ntxaws thiab lub sijhawm tiag tiag;

Q: Koj lub sijhawm lav yog dab tsi?
A: hauv 12 lub hlis tom qab tau txais cov khoom.
