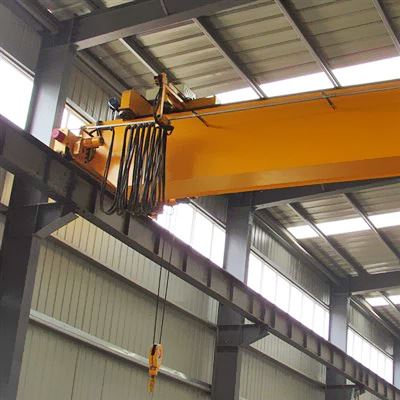

LDP hom trolley overhead crane (tom qab no hu ua crane) yog tsim thiab tsim raws li JB/T1306-94 tus qauv. Nws yog siv ua ke nrog CD1, MDI thiab lwm hom hluav taws xob hoists los ua lub teeb thiab me me crane uas khiav tawm. Lub tshuab hluav taws xob hoist nyob rau ntawm ib sab ntawm lub ntsiab nqaj, uas ua rau kom qhov chaw pabcuam ntawm tus nuv thiab txo qhov siab thiab tus nqi ntawm lub Hoobkas.


Lub peev xwm nqa tau yog 1 ~ 16 tons, qhov siv tau yog 7.5m -22.5m, kev ua haujlwm kub yog -25 degree ~ +40 degree , thiab cov av noo tsawg dua lossis sib npaug 84%. Nws ua haujlwm nyob rau hauv ib puag ncig yam tsis muaj hluav taws kub, tawg thiab corrosive xov xwm, thiab nws yog txwv tsis pub nqa cov kua hlau, tshuaj lom, flammable, thiab cov khoom tawg.


Muaj peb hom kev tswj hluav taws xob raws li cov ntaub ntawv kev khiav hauj lwm sib txawv, ib qho yog los tswj hauv av nrog lub thawv cable khawm tshem tawm ntawm lub tshuab hluav taws xob hoist; lwm qhov yog tswj hwm hauv av nrog cov chaw taws teeb tswj los ntawm kev txais cov khoom siv wireless txuas nrog hluav taws xob hoist; tom kawg yog ua haujlwm hauv lub cab ntawm sab ntawm tus choj.


Thawj ob hom neeg ua haujlwm taug kev nrog lub tsheb, thiab kev khiav ceev ntawm tus choj ncej tsis tuaj yeem ceev heev, feem ntau tsis tshaj 45m / min, 20 m / min, thaum tus neeg tsav tsheb cab tuaj yeem ua rau tus choj ncej khiav nrawm dua, 45 m/min.


Lub trolley overhead crane fais fab mov yog qhia los ntawm lub kaum sab xis steel los yog trolley kab ntawm ib sab ntawm cov nroj tsuag, thaum lub zog hoist yog powered los ntawm cables. Lub tshuab hluav taws xob hoist thiab tag nrho cov crane tau nruab nrog cov khoom siv kev nyab xeeb, xws li nqa qhov hnyav limiter, nqa txwv hloov, qhov kawg txwv hloov, hluav taws xob txwv hloov, thiab lwm yam.


Cov khoom no feem ntau yog siv rau hauv kev tsim khoom, kev sib dhos tshuab thiab warehouses, thiab lwm yam. Nws cov yam ntxwv muaj raws li hauv qab no:


Lifting Nyhav (t)	1				2				3				5				10				16				20
Ntev (m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	10	16	19	26
Ua hauj lwm ceev (m / min)	Hauv av 20								Hauv av 30								Hauv av 20		Hauv av 30		Hauv av 20				Hauv av 20
Qauv ntawm Electric Hoist	CD1 Model								Qauv: MD1								CD1 Model		Qauv: MD1		CD1 Model		Qauv: MD1		CD1 Model		Qauv: MD1
Lifting ceev (m / min)	8								8/0.8								7		7/0.7		3.5		3.5/0.35		3.5		3.5/0.35
Hoisting Qhov siab (m)	6,9,12,18,24,30 lossis Customized
Chav Ua Haujlwm	A3,A4
Hluav taws xob tam sim no	Peb-theem AC 380V 50Hz lossis Customized

Hlau qauv ntu:


Lub ntsiab girder feem ntau yog welded los ntawm steel daim hlau los tsim ib lub thawv-zoo li lub web girder. Lub beam tseem welded rau hauv ib lub thawv zoo nrog steel daim hlau. Rau qhov yooj yim ntawm kev khaws cia thiab kev thauj mus los, lub ntsiab nqaj thiab lub nqaj txuas nrog lub zog muaj zog bolts.


Hluav taws xob hoist:


Lub tshuab hluav taws xob tuaj yeem nqa cov khoom hnyav thiab txav mus ntev raws lub nqaj loj ntawm lub flange qis ntawm I-beam nyob rau hauv lub ntsiab nqaj. Lub ntsiab ntau yam yog CD1 thiab MD1.


Rau CD1 hom, qhov nqa ceev yog 8m / min (thaum lub peev xwm nqa yog 10 tons, lifting ceev yog 7m / min);


Hom MD1 yog ob-ceev hoist nrog lifting ceev ntawm 8 m / min thiab 0.8 m / min (thaum lub peev xwm nqa yog 10 tons, lifting ceev yog 7 m / min thiab 0.72 m / min).


Txheem nqa qhov siab yog 6m, 9m, 12m, 18m, 24m, 30m thiab lwm yam. Muaj ob hom hoist khiav ceev raws lub ntsiab nqaj: 30m / min thiab 20m / min, feem ntau 20m / min.


Kev ua haujlwm mechanism:


Cov khoom no txais cov ntawv tsav tsheb sib cais, uas ua tiav los ntawm conical braking asynchronous lub cev muaj zog, thiab cov cuab yeej deceleration adopts "ib qho qhib, ib qho kaw" iav txo kev sib kis.


Cov khoom siv hluav taws xob


Lub cev muaj zog ntawm peb cov khoom yog conical braking asynchronous lub cev muaj zog. Lub tshuab hluav taws xob hoist thiab tag nrho lub tshuab yog nruab nrog cov cuab yeej kev nyab xeeb, xws li: nqa txwv kev hloov, lub laub kawg txwv hloov, thiab lwm yam.



Kev teeb tsa


1. Ntawm qhov chaw neeg siv, teeb tsa cov cuab yeej tsav tsheb ntawm tus choj choj crane kev khiav hauj lwm mechanism ntawm qhov kawg beam.


2. Txuas lub ntsiab thiab kawg kab teeb nrog bolts. Cov bolts yog lub zog muaj zog bolts uas nws qhov kev ua tau zoo tuaj yeem ua kom lub zog txuas ntawm lub ntsiab thiab kawg kab teeb. Thaum zawm cov bolts, fasten lawv diagonally symmetrically nce thiab nqis, sab laug thiab sab xis. Tom qab lub ntsiab thiab qhov kawg kab teeb tau sib sau ua ke, lawv tuaj yeem raug tshuaj xyuas raws li cov kev cai tsim nyog ntawm tus qauv JB/T1306-94. Qhov sib txuas ntawm lub ntsiab kawg kab teeb yuav tsum tau ntxuav ntawm burrs ua ntej sib dhos.


3. Sib sau ua ke lub trolley overhead crane davhlau ya nyob twg txoj kev hloov thiab hloov lub thawv thiab lwm yam khoom siv hluav taws xob ntawm qhov kawg kab, txuas cov khoom siv hluav taws xob, thiab debug ob lub cav khiav kom lawv tig mus rau tib txoj kev.


4. Lub tshuab hluav taws xob tuaj yeem raug ntsia ua ntej rau ntawm lub ntsiab girder thiab txhim kho ntawm txoj kev ua ke nrog lub crane, lossis nws tuaj yeem txhim kho nyias.


5. Cov chav tswj yuav tsum tau sib sau ua ke rau lub crane tom qab lub crane tau txhim kho ntawm txoj kev khiav.


6. Xa mus rau daim duab kos kom txhim kho lub zog trolley kab khoom siv.


7. Txhim kho thiab txuas cov kab tswj raws li kev teeb tsa hluav taws xob thiab cov kab hluav taws xob. Tom qab kev teeb tsa, nws yuav tsum tau ua kom ntseeg tau tias cov kev taw qhia txav ntawm lub crane yog raws li cov kev taw qhia tau teev tseg los ntawm cov nyees khawm hauv chav tswj.

Kev siv thiab tu


Kuaj khiav: Nyob rau hauv cov ntaub ntawv uas tsis muaj load, qhib lub hwj chim, pib thiab xyuas seb cov kev khiav hauj lwm mechanism, tswj system thiab kev ruaj ntseg ntaus ntawv yog rhiab heev thiab raug, thiab kho nws kom ruaj ntseg thiab txhim khu kev qha ua ntej siv.


Tsis txhob tshaj qhov ntsuas lifting peev ntawm lub trolley overhead crane.


Nws tsis raug tso cai los dai cov khoom obliquely raws li cov kev taw qhia ntawm lub ntsiab nqaj.


Tus neeg siv yuav tsum nco ntsoov xyuas seb puas muaj qhov txawv txav hauv txhua qhov ntawm lub crane, tshwj xeeb tshaj yog kev sib txuas ntawm lub ntsiab kawg beam. Yog tias tsis muaj vuam, nws yuav tsum tau kuaj xyuas ntau zaus.



Cov kev ceev faj


Nws yog nruj me ntsis txwv tsis pub nqa cov neeg ntawm lub trolley overhead crane (xws li hoists), thiab nws yog nruj me ntsis txwv tsis pub sawv ntsug hauv qab cov khoom hnyav;


Cov pob qij txha rau steel hlau hlua ntawm cranes (nrog rau cov hoists) yuav tsum ua raws li cov cai ntawm GB5973-86.


Raws li cov kev cai, qhov ntev ntawm cov hlua hlua lub taub hau yog 200mm, thiab ob txoj hlua clamps raug ntsia kom ruaj ntseg ntawm cov hlua khi.


Cov hlua steel hlau yog kaw thiab kaw, thiab nws yog nruj me ntsis txwv tsis pub rau nruab, tswj thiab khiav cov khoom siv yam tsis muaj ntawv tso cai;


Tom qab siv lub trolley choj crane (nrog rau lub gourd) yog siv, qhov siab ntawm tus nuv los ntawm hauv av yog ntau tshaj los yog sib npaug zos rau 2 meters;


Tus neeg siv yuav tsum sau lub reducer nrog roj ua ntej kuaj thiab pib nws.
