Gantry Choj

1. Khoom Taw Qhia:

QY metallurgical gantry choj cranes yog siv rau hlau dov, smelting, thiab thermal ua. Gantry choj yog feem ntau haum rau ib puag ncig nrog ambient kub xws li rho tawm 10 degrees Celsius mus rau 50 degrees Celsius. Nyob rau ntawm qhov kub ntawm 40 degrees Celsius, tus txheeb ze humidity yuav tsum tsis txhob ntau tshaj 50%. Cov hlau molten raug tshem tawm muaj kev cuam tshuam tsis zoo rau cov phaj hooks thiab forging hooks. Qhov kub ntawm hluav taws xob tsis tshaj 300 degree



Peb tau nruab no crane nrog cov yam ntxwv kev nyab xeeb siab heev uas ua kom cov neeg siv khoom muaj kev nyab xeeb ib txwm los ua ntej. Cov khoom tseem ceeb xws li lub hoist, cov khoom siv hluav taws xob, thiab cov khoom siv kev nyab xeeb, yog cov khoom muaj npe nrov uas ua rau muaj kev thaj yeeb nyab xeeb ntawm lub siab paub tias peb cov crane yog tsim los rau kev nyab xeeb.



2. Parameters:

Lifting peev (t)		125/32		140/40			160/50			180/40(50)			Customized
Ntev (m)		19	22	19	22	25	19	22	25	19	22	25	Customized
Lifting qhov siab (m)	Main Hook	24	20	Customized
	Pab Hook	26	22	25			26			26			Customized
Ceev (m / min)	Main Hook	9.5	7.6	Customized
	Pab Hook	12	9.5	9.5			7.8			9.5			Customized
Chav Ua Haujlwm		A7,A8
Hluav taws xob tam sim no		Customized

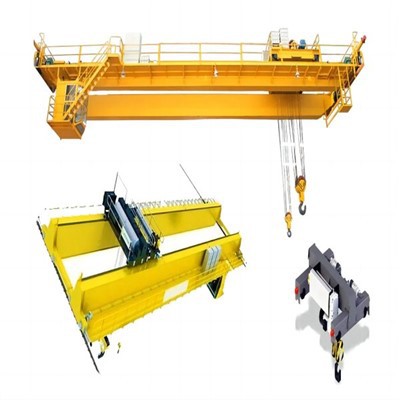

3. Cov khoom siv:



QY metallurgical gantry choj cranes yog tsim los ntawm tsib qhov chaw: lub thawv-zoo li tus choj ncej, lub laub kev khiav hauj lwm mechanism, trolley, lob thoob, thiab cov khoom siv hluav taws xob, uas zoo ib yam nrog cov dav dav ob-girder choj crane. Txawm li cas los xij, Metallurgical Electric Ob Chav Girder.



QY metallurgical gantry choj cranes yuav tsum muaj cov kev ntsuas zoo hauv qab no los xyuas kom meej qhov kev siv ntawm crane:



Cov khoom siv hluav taws xob tiv thaiv hluav taws kub thiab hluav taws kub: hauv qab ntawm tus neeg tsav tsheb cab; hauv qab ntawm lub ntsiab beam thiab lifting beam; cov xaim qhov chaw ntawm txoj kev thiab lub platform, hauv qab ntawm lub hoisting trolley thiab lwm qhov chaw uas raug hluav taws xob hluav taws xob, tag nrho cov khoom muaj zog nrog lub tsheb cua sov-radiating;

Kev ywj pheej tsav lub ntsiab thiab pab trolleys. Lub trolley tseem ceeb yog nruab nrog qhov chaw ruaj khov gantry hooks kom hoist lub nruas steel; lub auxiliary trolley tuaj yeem siv los kho lub nruas steel lossis ua lwm yam kev pabcuam nqa nqa;



Cov qib kev tiv thaiv ntawm tag nrho cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob tswj tau ua tau raws li cov qauv tsim rau metallurgical ob-girder overhead cranes;



4. Ib puag ncig siv tau:

QY metallurgical gantry choj cranes yog siv rau tshwj xeeb cranes rau hlau smelting, dov thiab thermal ua.



Qhov siab tshaj ntawm qhov chaw nres tsheb gantry yuav tsum tsis pub tshaj 2000m (Thaum nws siab tshaj 1000m, lub peev xwm ntawm lub cev yuav tsum tau kuaj xyuas raws li cov kev cai ntawm GB755).



Qhov chaw ua haujlwm kub thiab av noo ntawm tus choj gantry: Qhov chaw ua haujlwm kub ntawm crane feem ntau yog -10 ~ +50 degree ; Tus txheeb ze av noo tsis tshaj 50% ntawm qhov kub ntawm +40 degree .



Lub tsev kawm ntawv uas siv QY metallurgical gantry choj cranes yuav tsum tsis muaj nplaim taws, tawg thiab corrosive gases thiab yuav tsum ua raws li cov kev cai ntawm cov qauv thiab cov ntaub ntawv.



Kev teeb tsa ntawm QY ​​crane khiav khiav feem ntau yuav tsum ua raws li cov cai ntawm GB10183. Nyob rau hauv cov xwm txheej tshwj xeeb, nws tuaj yeem teev cais raws li qhov xav tau.

5. QY metallurgical gantry choj cranes radiant tshav kub tiv thaiv ntaus ntawv thiab fireproof board:



1. Hauv qab ntawm lub tsheb tavxij ntawm QY ​​metallurgical gantry choj cranes uas nqa cov hlau molten lossis cov khoom kub uas raug rau hluav taws xob ncaj qha yuav tsum tau nruab nrog cov hluav taws xob hluav taws xob thaiv.



2.Gantry choj cranes uas nqa molten hlau los yog cov khoom kub (tshwj tsis yog cov cranes nrog qis flanges raws li khiav rails) yuav tsum tau nruab nrog radiant tshav kub tiv thaiv cov cuab yeej nyob rau hauv qab ntawm lub ntsiab beams thiab lifting beams ncaj qha mus rau radiant tshav kub.



3. QY metallurgical gantry choj cranes uas siv cov flange nram qab no raws li kev khiav thiab nqa cov hlau molten lossis cov khoom kub yuav tsum tau nruab nrog lub tsheb hluav taws xob hluav taws xob hluav taws xob nyob hauv qab ntawm daim ntawv trolley.



4. Lub rooj tsav xwm hluav taws xob tiv thaiv hluav taws xob yuav tsum tau nruab nrog txhim khu kev qha tiv thaiv kev poob.



5. Rau cov cranes uas raug cuam tshuam ncaj qha los ntawm cov nplaim taws (xws li feed-span casting cranes hauv cov nroj tsuag steel), nws yog ib qho tsim nyog rau nruab cov hluav taws xob hluav taws xob nyob rau hauv cov txheej txheem tseem ceeb uas cov nplaim taws ncaj qha hlawv.



6. Cov txheej rwb thaiv tsev yuav tsum tau muab rau ntawm qhov chaw xaim ntawm cov kab lus thiab cov platforms uas cov cranes uas nqa cov hlau molten lossis cov khoom kub raug ncaj qha rau cov cua sov.



7. Cov cranes uas nqa cov hlau molten los yog cov khoom kub yuav tsum tau siv kev tiv thaiv rau cov khoom siv hluav taws xob uas raug cuam tshuam ncaj qha rau cov hluav taws xob hluav taws xob.



6. Yuav ua li cas khiav ib QY metallurgical gantry choj cranes?



Muaj ob hom tsav tsheb cab, hom qhib thiab kaw hom.

Yog koj xav paub ntxiv, thov nyem qhov no.



7. Kev thauj mus los:

8. Vim li cas thiaj xaiv peb?

(1) Yuav luag 35 xyoo kev tsim khoom hauv crane industries.



(2) Exports rau ntau tshaj 120 lub teb chaws.



(3) 7 * 24 teev kev pabcuam online.
